HYDRAFORCE
SV90-G39S-0-G-12EY2A
5019603S
$45.25
- HYDRAFORCE
- Material:5019603S
- Model:SV90-G39S-0-G-12EY2A SOLENOID VALVE
- Summary:SOLENOID CARTRIDGE VALVE 2-POSITION, 3-WAY
Quantity in stock: 0

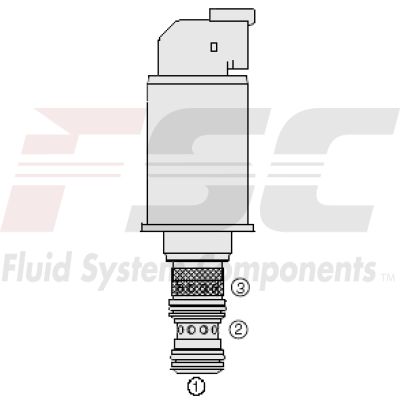

Description The SV90-G39X is a direct-acting, spool-type, 2-position, 3-way directional control valve. It is a drop-in, flange mounted, cartridge type valve for use with general purpose hydraulic fluids. The coil is an integral part of the valve and is not serviceable. Operation When de-energized, the SV90-G39X allows flow from port 2 to port 1, while blocking flow at port 3. When energized, the spool shifts to open from port 3 to port 2, while blocking flow at port 1. Features Bi-directional operation Reduced leakage Low pressure drop Economical drop-in style Fast response Corrosion-resistant plating Inlet port screen option for additional resistance to contamination Higher flow capacity at lower temperatures Integral waterproof coil standard. See page 3.400.1 for a description of tests conducted to verify coil waterproofing Coil voltage range from 10 to 28 VDC Top-mounted coil with several push-on termination options Round flange with optional mounting plates provides more options for orientation Retrofit mounting options also available
Properties: Unit weight:
0.29 kg (0.65 lb)
Internal wetted surface area:
314 cm² (48.6 in²)
Ratings: Pressure Ratings
Pressure rating:
35 bar (500 psi)
Port 1
45 bar (650 psi)
Ports 2, 3
Proof pressure:
54 bar (780 psi)
Port 1
207 bar (3000 psi)
Ports 2, 3
Burst pressure:
165 bar (2400 psi)
All ports pressurized
275 bar (4000 psi)
Ports 2 and 3 pressurized
Flow Ratings
Flow rating:
30 lpm (8 gpm)
Maximum internal leakage:
90 ml/min (5.5 in³/min)
At 45 bar (650 psi)
Other Ratings
Cycle life:
Ten million cycles
Response:
25 ms
(pull-in) first indication of change of state with 100% voltage and flow
rating
25 ms
(drop-out) first indication of change of state with 100% voltage and
flow rating
Environmental rating:
Ip69k
Corrosion protection:
960 hour salt spray per ASTM b117
Temperature Ratings
Operating fluid temperature:
-40 to 149 °C (-40 to 300 °F)
With HNBR seals
-26 to 204 °C (-15 to 400 °F)
With fluorocarbon seals
Storage temperature:
-40 to 70 °C (-40 to 160 °F)
Ambient temperature:
-40 to 120 °C (-40 to 248 °F)
Operating Parameters: Fluids:
Mineral based or synthetic hydraulic fluid with lubricating
properties
Fluid viscosity range:
7.4 to 420 cSt
Maximum operating contamination level:
20/18/14 per ISO 4406
Electrical Parameters: Coil resistance:
4.83 ohms
Coil 10 Vdc
7.28 ohms
Coil 12 Vdc
10.05 ohms
Coil 14 Vdc
18.35 ohms
Coil 20 Vdc
29.54 ohms
Coil 24 Vdc
40.36 ohms
Coil 28 Vdc
Valve inductance:
65 mH
Coil 10 Vdc
98 mH
Coil 12 Vdc
146 mH
Coil 14 Vdc
273 mH
Coil 20 Vdc
418 mH
Coil 24 Vdc
620 mH
Coil 28 Vdc
Performance:
Installation Specifications: Cavity:
VC-G024
Standard configuration
Drop-in cavities
Installation type:
Flange mounted
Orientation restriction:
None
Mounting screw torque:
3 to 4 N-m (2.2 to 3.0 ft-lb)
For standard VC-G024 Cavity
Note:
For retro-fitting into older drop-in cavities and other mounting
options, see "Mounting-options-for-G3-valves" technical reference
Mounting
options for G3 Valves
Order Code: POSITION CODE DESCRIPTION SV90-G39G-H-J-KL-U G Screen G BLANK NONE G S 60 Mesh Screen H Line Body H 0 No Body H 6T Aluminum SAE 6 J Seal J G HNBR (Hydrogenated Nitrile Butadiene Rubber) J V Fluorocarbon J P Polyurethane K Coil Voltage K 10 10 VDC K 12 12 VDC K 14 14 VDC K 20 20 VDC K 24 24 VDC K 28 28 VDC L Coil Termination L EJ E-Coil, AMP Jr. L ER E-Coil, Deutsch L EY2A E-Coil, Metri-Pack 150.2 U Mounting Plate U BLANK None U G Standard Single Valve Plate U T Retro-Fit Plate
Dimensions:
Accessories: Mounting plate:
HF P/N 4595096
Use with standard VC-G024 cavity
HF P/N 4210236
Use with retrofit VC-T001 cavity
Mounting screw:
M5 x 0,8 x 12 mm long, HF P/N: 4002609 (sold separately)
Seal kit:
SK-G027-X
X=seal option
Seal kit installation instructions
Ported test body:
HF P/N: 71607X0
