HYDRAFORCE
5000596

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

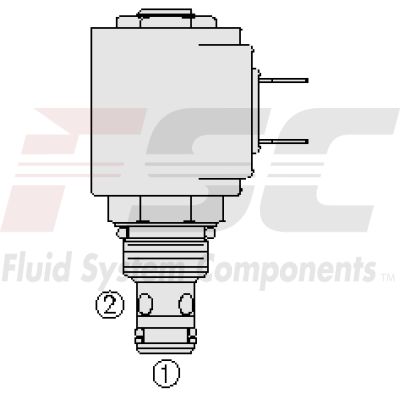

The Hydraforce 5000596 (5000596) is a solenoid-operated, 2-way, normally closed, piloted poppet-type, screw-in hydraulic cartridge valve designed primarily as a blocking or load-holding device suitable for low flow circuits. The operation of this valve is straightforward: when de-energized, the sf0820x functions as a check valve, permitting fluid flow from port 1 to port 2 and blocking the reverse flow from port 2 to port 1. Upon energization, the poppet lifts to enable flow from port 2 to port 1, while significantly restricting flow in the opposite direction. This model boasts several notable features enhancing its functionality and durability. It is equipped with a continuous-duty rated coil and a hardened seat that ensures long life and minimal leakage. The unit offers optional coil voltages and terminations, providing flexibility for various application requirements. Moreover, all cartridges are voltage interchangeable which adds to its adaptability across different systems. The unitized, molded coil design improves reliability, and for environments requiring robust performance against water ingress, there are optional waterproof E-Coils rated up to IP69K. Additionally, the Hydraforce 5000596 benefits from corrosion-resistant plating that withstands up to 960 hours of salt spray per ASTM B117 standards, ensuring extended service life even under harsh conditions. Its industry common cavity allows for easy integration or replacement in existing systems without the need for extensive modifications. The compact size of this valve makes it an ideal choice for applications where space is at a premium but performance cannot be compromised.
