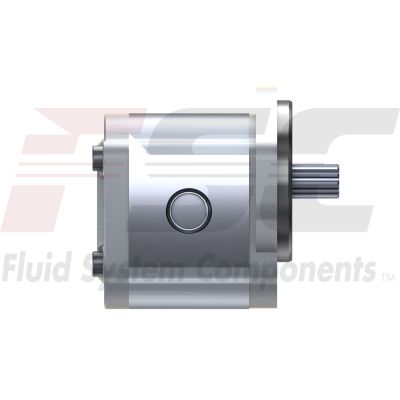

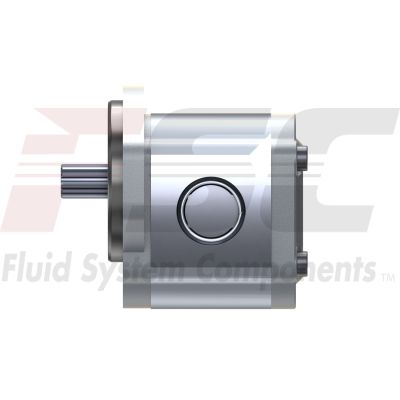

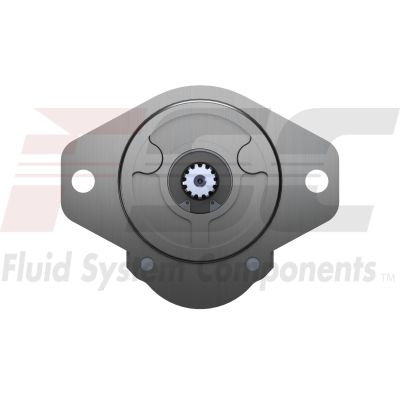

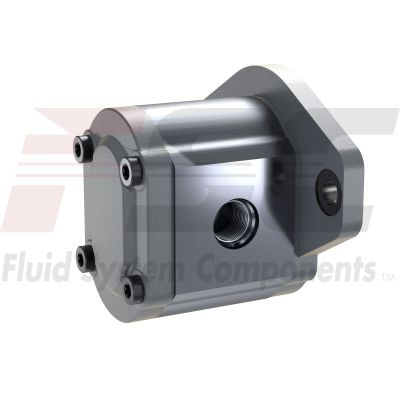

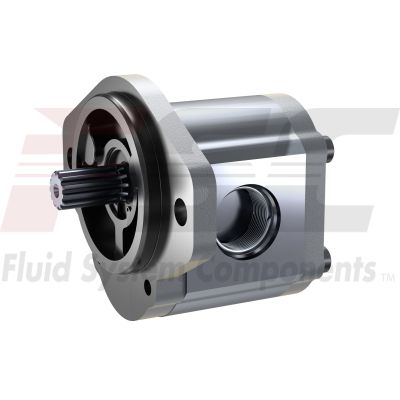

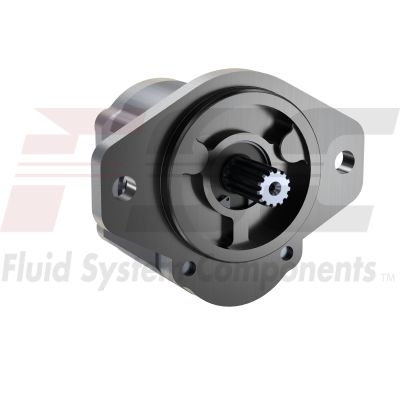

BOSCH REXROTH
9510390009
$693.90
- BOSCH REXROTH
- Material:9510390009
- Model:AZPN-12-025LDC12MB-S0040 GO2
Quantity in stock: 23
25 cm³/rev, Counter clockwise rotation, Spline shaft SAE J744 22-4 (13T 16/32DP), SAE J744 101-2 (B) 2-bolt flange, Thread UN-2B, SAE O-ring
The key task of external gear pumps is to convert mechanical energy (torque and rotational speed) into hydraulic energy (flow and pressure). To avoid unnecessarily high heat losses, units with high efficiencies are sought after. These are realized by means of pressure-dependent gap sealing and high-precision manufacturing technology.
Unpacked Weight: 5.52 kg
| Long service life |
| Drive shafts according to ISO or SAE and customer specific solutions |
| Port connections: flanged or threaded |
| Slide bearings for high loads |
| Consistent high quality based on large-volume production |
| Offer Drawing | Download Offer Drawing |
| Data Sheet | Download Data Sheet |
| 3D CAD | Download 3D CAD |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Rear cover | Standard |
| Maximum rotational speed | 3000 |
| Productgroup ID | 7,21,22,23,24,25 |
| Size (geometric displacement) | 25 |
| Sealing material | NBR |
| Version | Corrosion resistant, pinned |
| Special version | Deviations from catalogue standards, see drawing |
| Noise level | Standard noise level |
| External gear unit | External Gear Unit |
| Application | general |
| Drive shaft | Spline shaft SAE J744 22-4 (13T 16/32DP) |
| Housing material | Aluminum |
| Line connection | Thread UN-2B, SAE O-ring |
| Series | Model N (20 ... 36 cm³/rev) |
| Front cover | SAE J744 101-2 (B) 2-bolt flange |
| Maximum intermittent pressure | 210 |
| Direction of rotation | Counter clockwise rotation |
| Unit version | Housing width 110 mm |
| External gear unit function | Pump |
| Weight | 5.52 |
| Max. flow | 75.0 |
